Krimpovací kleště MULTI
1 874,83 Kč*
Informace o výrobku

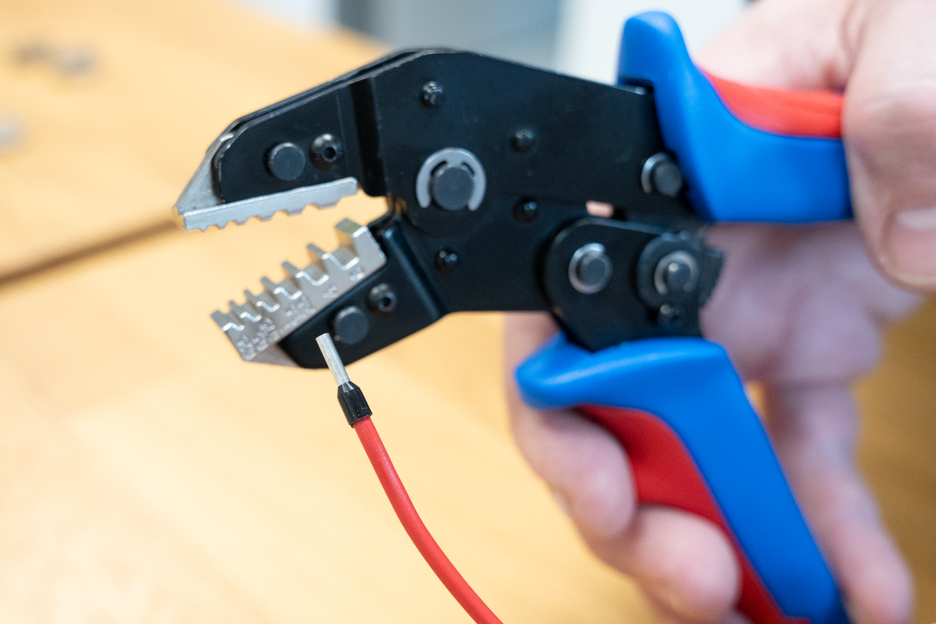

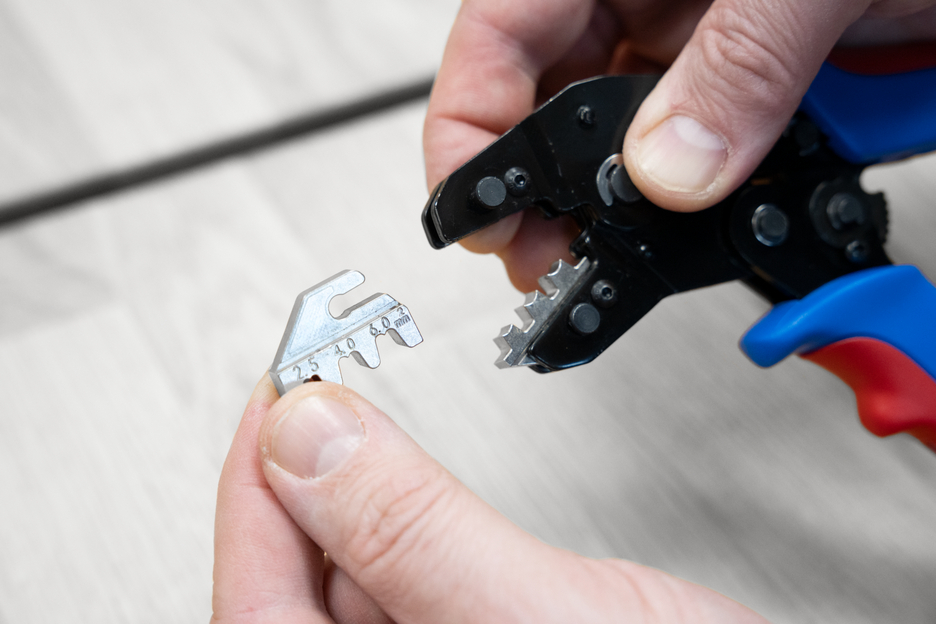

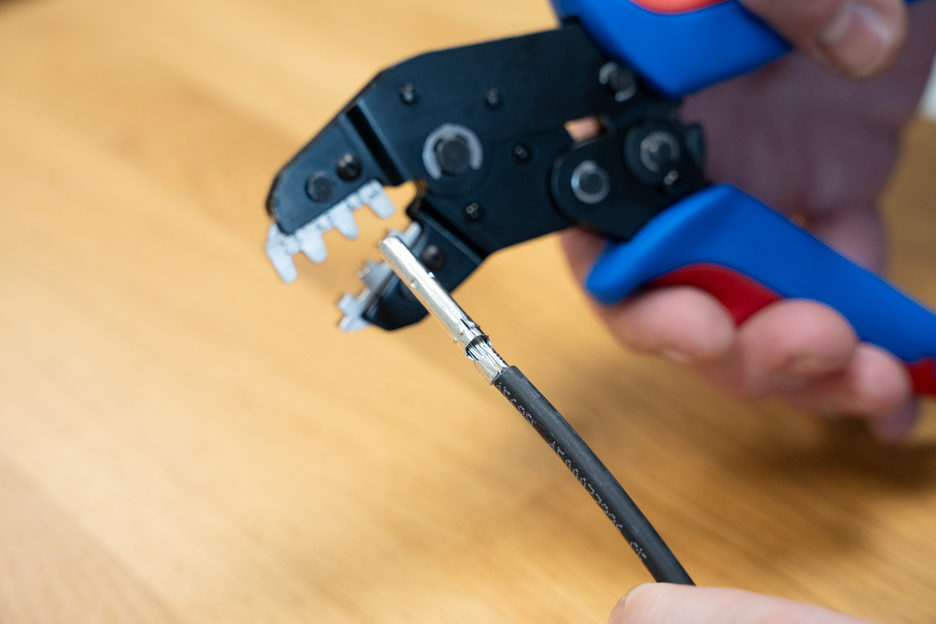

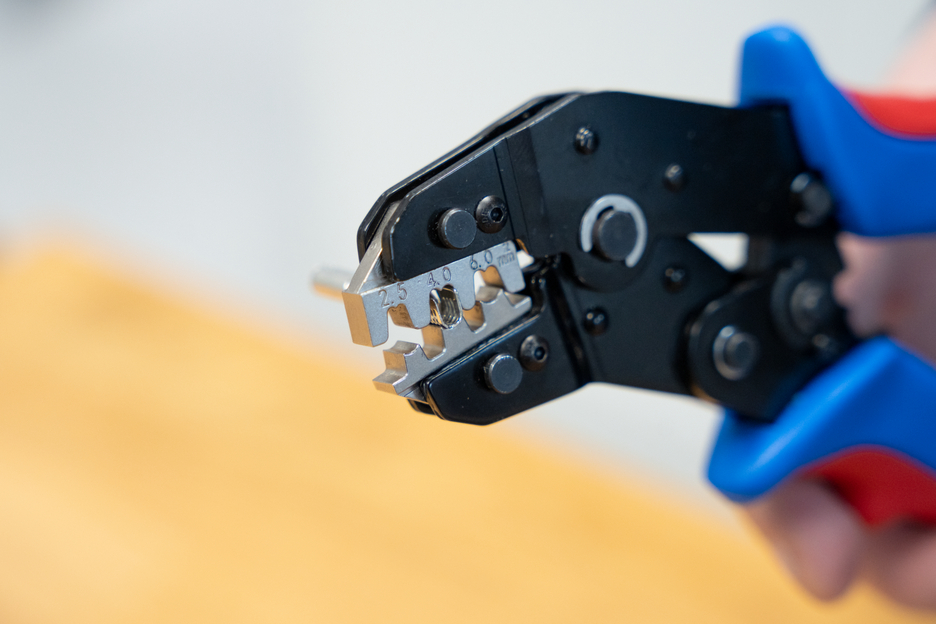

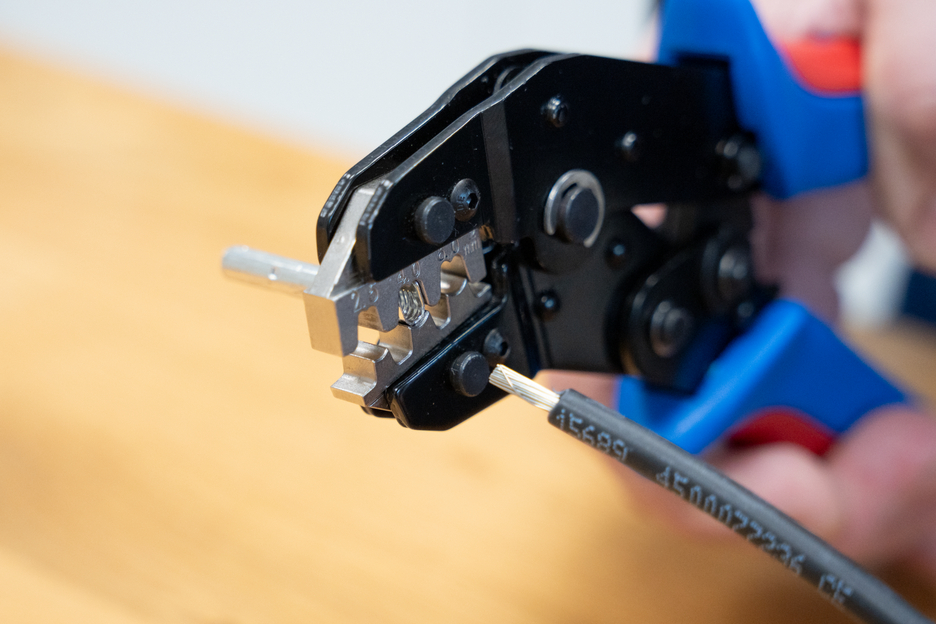

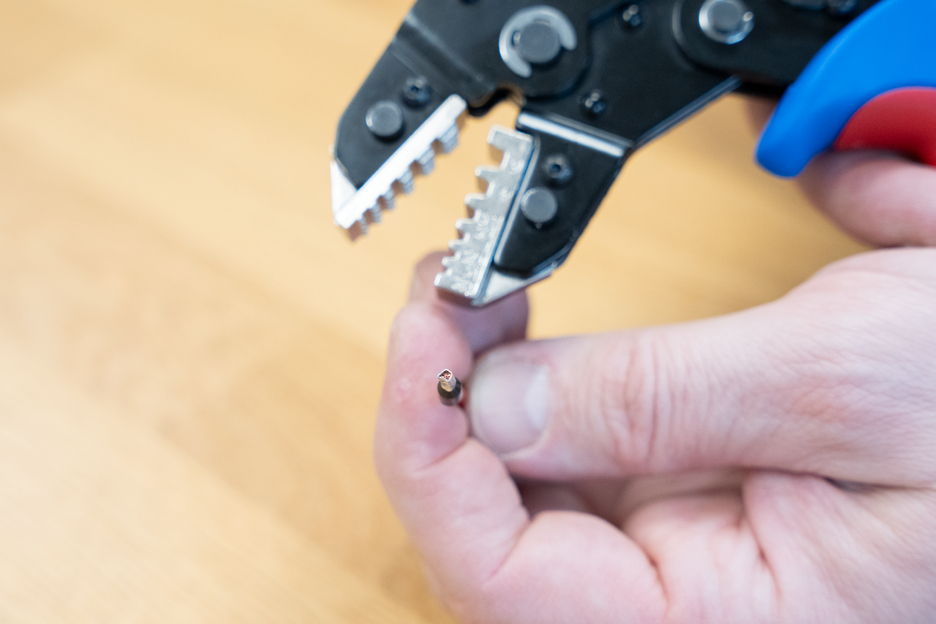

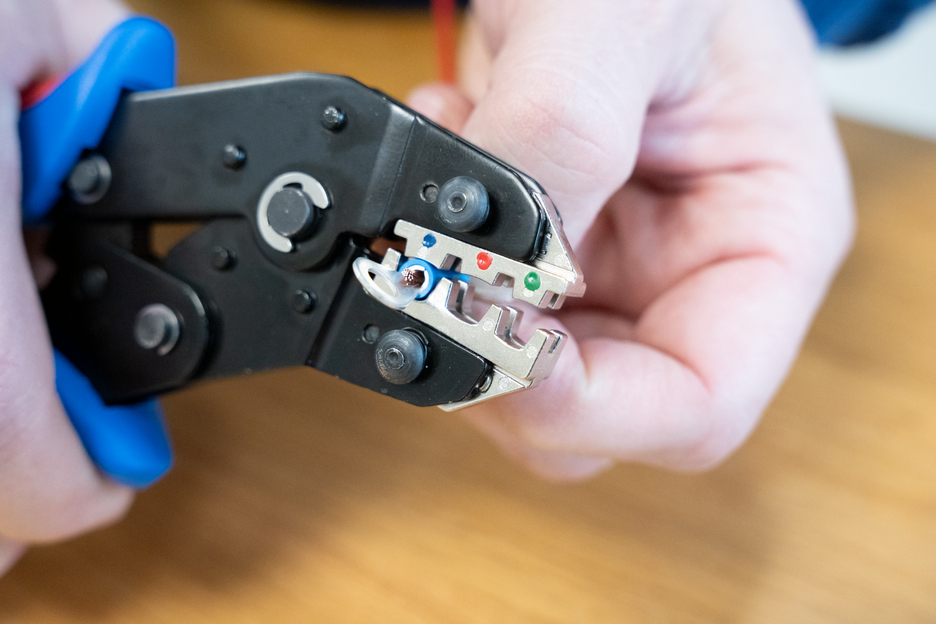

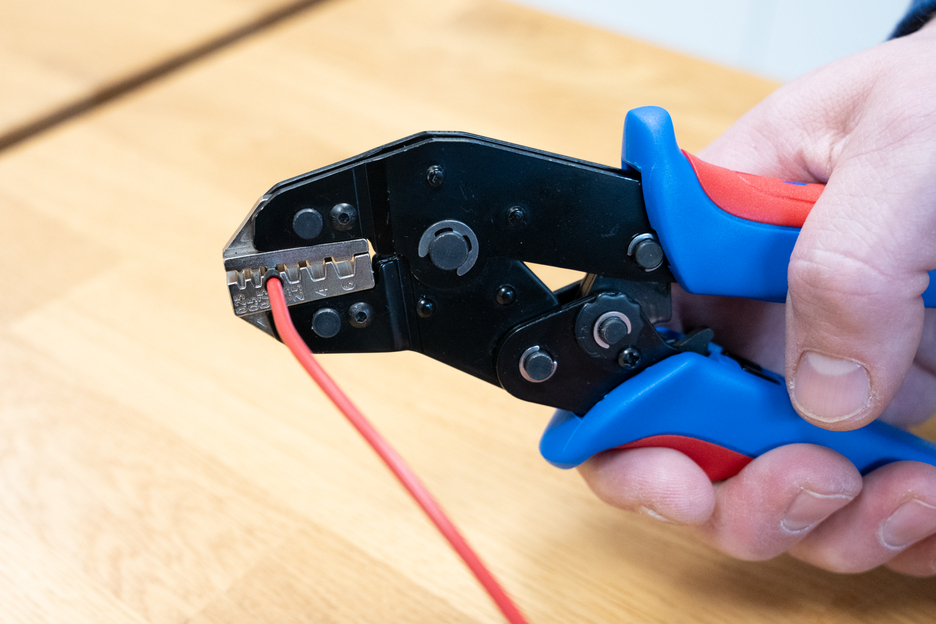

MULTI-CRIMP was developed for the process-safe crimping of various electrical connectors. The crimping tool has a ratchet mechanism with a blocking device to ensure a consistently high crimping quality and results that can be precisely repeated. The mechanism only opens the tool when the crimping process is complete. An emergency release has also been integrated into the handle, which opens the crimping tool in the event of misuse. The accurate eccentric setting ensures a high crimping quality thanks to the precisely adjustable crimping force. With the Multi Change System, the module pairs of the crimping tool can be exchanged quickly and easily, as needed. The change system, which requires no additional tools, ensures that the modules can be installed and removed fast. The standard version of the crimping tool is equipped with three pairs of modules made of high-quality steel. One pair for MC4 connectors with cable cross-sections of 2.5 mm², 4 mm² and 6 mm² (14-10 AWG). Another pair of modules for insulated wire end ferrules from 0.25-6 mm² (AWG 24-10) and a third module for insulated cable lugs from 0.25-2.5 mm² (AWG 24-14). The three pairs of modules are stored safely and protected from dust in a small plastic box. The 2-component handles of the MULTI-CRIMP tool ensure non-slip and ergonomically friendly handling with maximum force transmission. The tried and tested “ice-crack design” was used, which ensures a comfortable feel. The integrated eyelets on the handles can be used to attach a safety catch.
Stahování
Informace
- Nářadí
- Box mit Crimpmodulen
- Návod k použití
Přihlásit
Naše doporučení
(1 045,65 Kč* / 1 Kus)
(294,76 Kč* / 100 ml)
(1 064,34 Kč* / 1 Kus)
(2 343,04 Kč* / 1 Kus)
(862,13 Kč* / 1 Kus)
(753,23 Kč* / 1 Kus)
Bezpečnost produktu
Attention:
Tool not to be used on live cables or conductors.
